Wayup 5

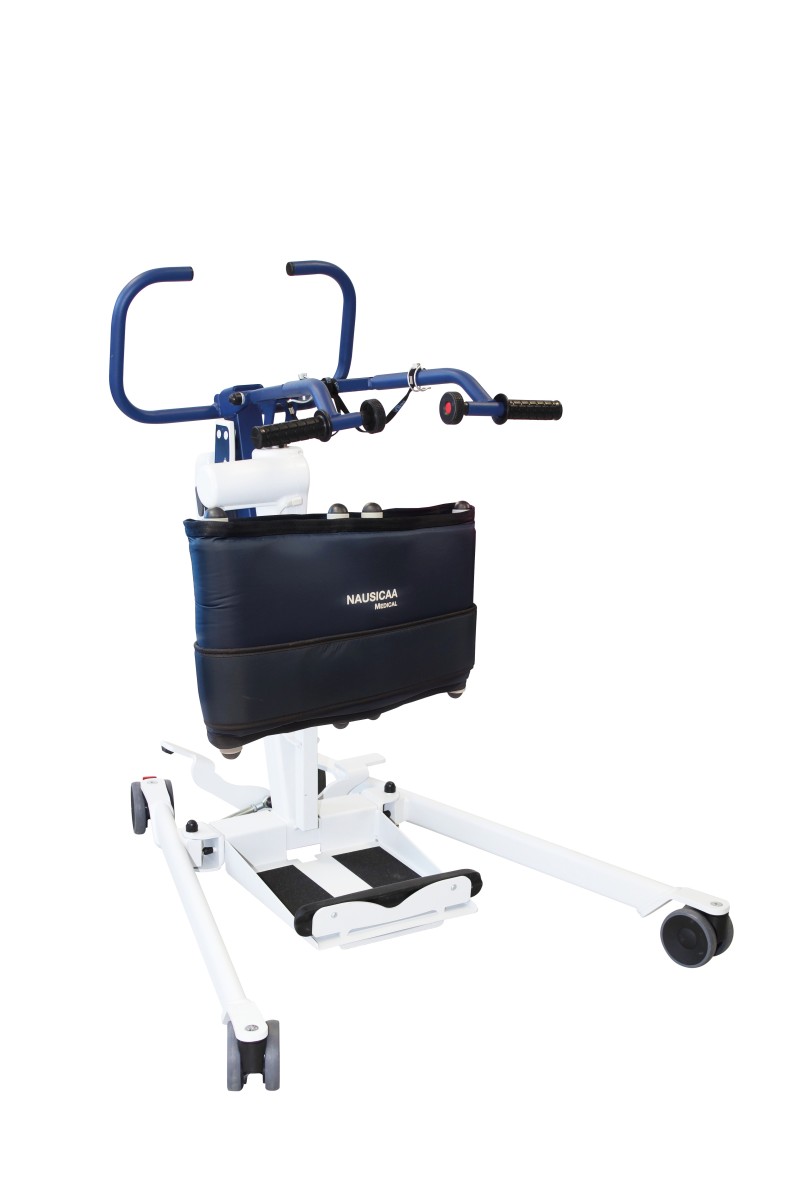

WAYUP 5 Mechanical leg spread

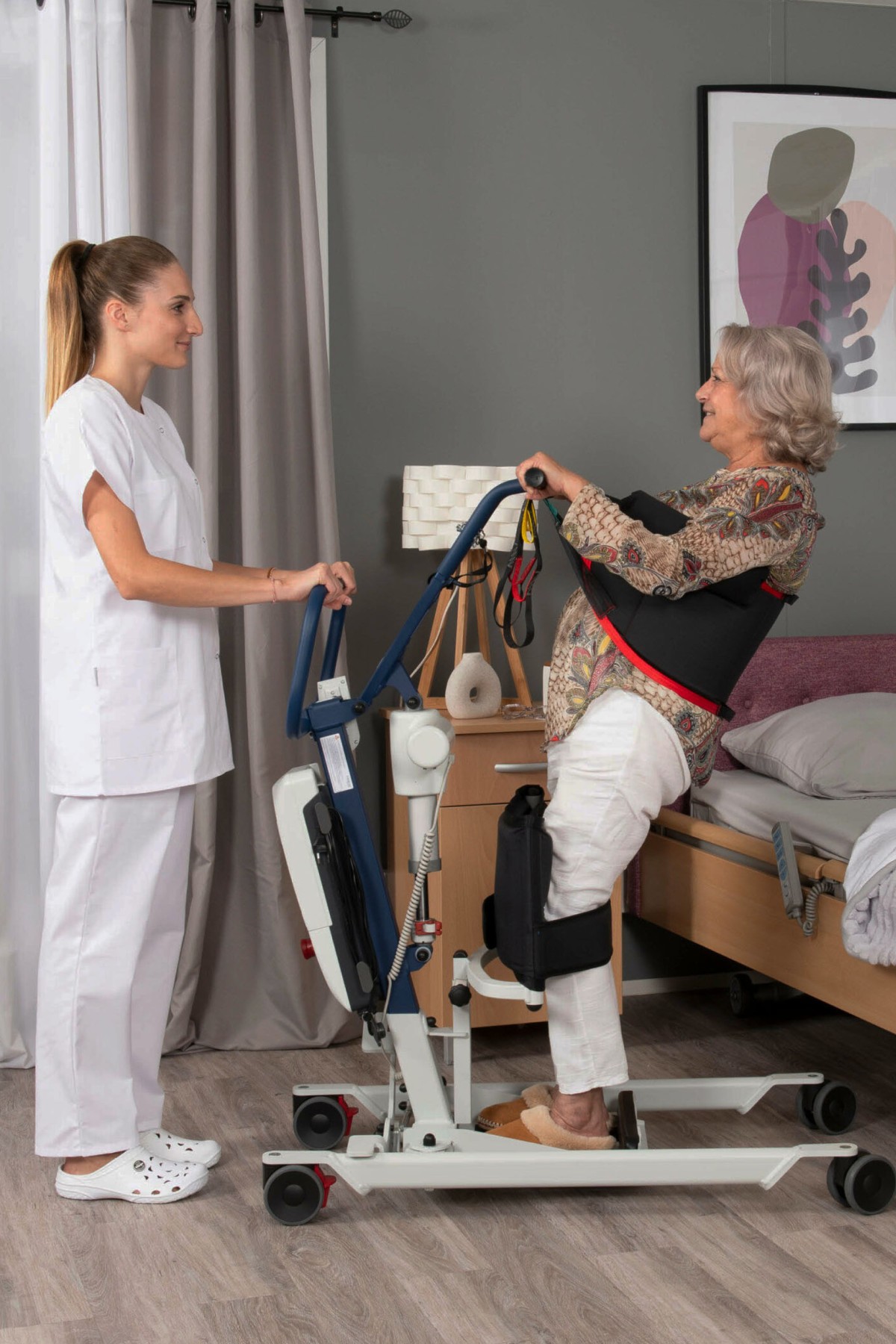

The new WAYUP 5 ECP is a stand-up lift designed to adapt to all body types, enabling the patient to stand while respecting the body’s natural lifting pattern.
Its wide base with mechanical leg spread provides a 90 cm opening width, making it compatible with a large number of chairs.
Its removable platform makes assisted ambulation easy to perform.
Made in France
CE certified
Class I medical device
Maximum capacity: 180 kg
Lifting actuator force: 8,000 N
Total weight with manual leg spread: 36 kg
Total weight with electric leg spread: 39 kg
Steel construction
Standard: NF EN ISO 10535:2007
Warranty: 5 years (excluding battery); lithium battery: 2-year warranty; lead-acid battery: 1-year warranty
Total length: 107 cm
Minimum useful height: 82 cm
Max. useful height: 135 cm
Total height: 106 cm
Frame height: 11.5 cm
Minimum base width: 54 cm
Maximum base width with mechanical spacing: 83 cm
Max. base width with electrical spacer: 80 cm
Turning diameter: 110 cm
Minimum useful height: 82 cm
Max. useful height: 135 cm
Total height: 106 cm
Frame height: 11.5 cm
Minimum base width: 54 cm
Maximum base width with mechanical spacing: 83 cm
Max. base width with electrical spacer: 80 cm
Turning diameter: 110 cm
WAYUP 5 with mechanical spacer
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. WAYUP range
WAYUP 5 with electric spreader
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. WAYUP range
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. WAYUP range
WAYUP 5 with electric spreader
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. WAYUP range
WAYUP 5 with mechanical spacer
1. Complete device
2. Battery pack
3. Cylinder
5. Remote control
WAYUP 5 with electric spreader
1. Complete device
2. Battery pack
3. Cylinder
4. Cylinder 2
5. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
1. Complete device
2. Battery pack
3. Cylinder
5. Remote control
WAYUP 5 with electric spreader
1. Complete device
2. Battery pack
3. Cylinder
4. Cylinder 2
5. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
