WAYUP 5 Fixed Base - Stand-Up Lifts - NAUSICAA Médical

WAYUP 5 Compact

Name: WAYUP 5 Compact
Brand: nausicaa-medical
SKU: WAYUP5-CBLI

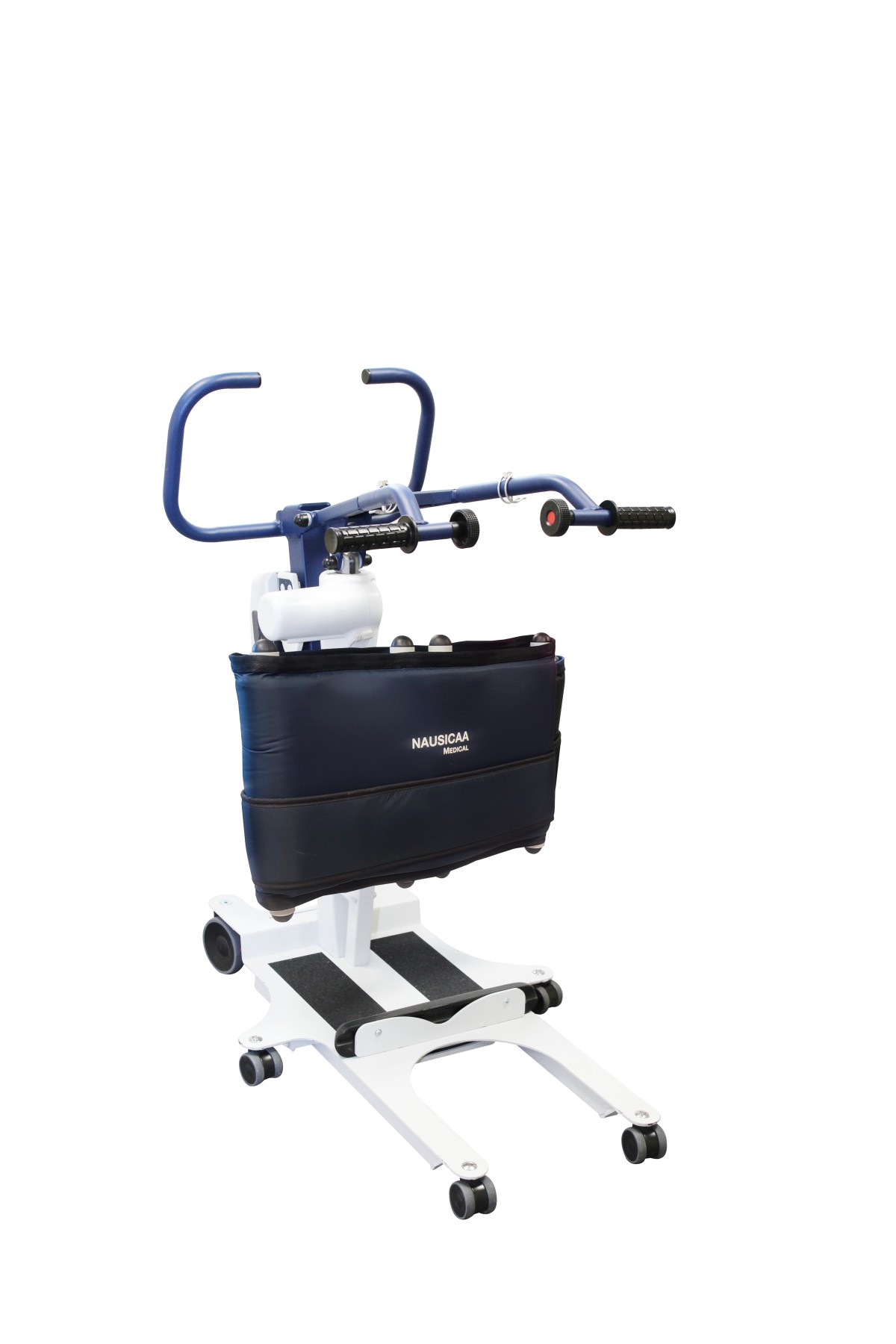

The new WAYUP 5 is a stand-up lift designed to accommodate all body types, enabling the patient to stand while respecting the body’s natural lifting pattern.
Its very low ground clearance (6.5 cm) allows it to pass under very low chairs, including 6-wheel powered chairs.
Its compact footprint allows it to fit into any environment, even tight spaces (such as toilets).

Reference WAYUP5-CBLI

Description

Made in France
CE certified
Class I medical device
Maximum capacity: 180 kg
Lifting actuator force: 8,000 N
Total weight: 32 kg
Steel construction
Standard: NF EN ISO 10535:2007
Warranty: 5 years (excluding battery); lithium battery: 2-year warranty; lead-acid battery: 1-year warranty

video

dimensions

Total length: 92 cm
Minimum useful height: 74.5 cm
Max. useful height: 121 cm
Total height: 100 cm
Frame height: 6.5 cm
Minimum base width: 34 cm
Max. baseplate width: 56.5 cm
Turning diameter: 90 cm

documents

1. Sales literature
2. Instruction manual
3. Product sheet
4. EU Declaration of Conformity
5. Selection assistance
6. WAYUP range

spare-parts

1. Complete device
2. Battery pack
3. Cylinder
4. Remote control
