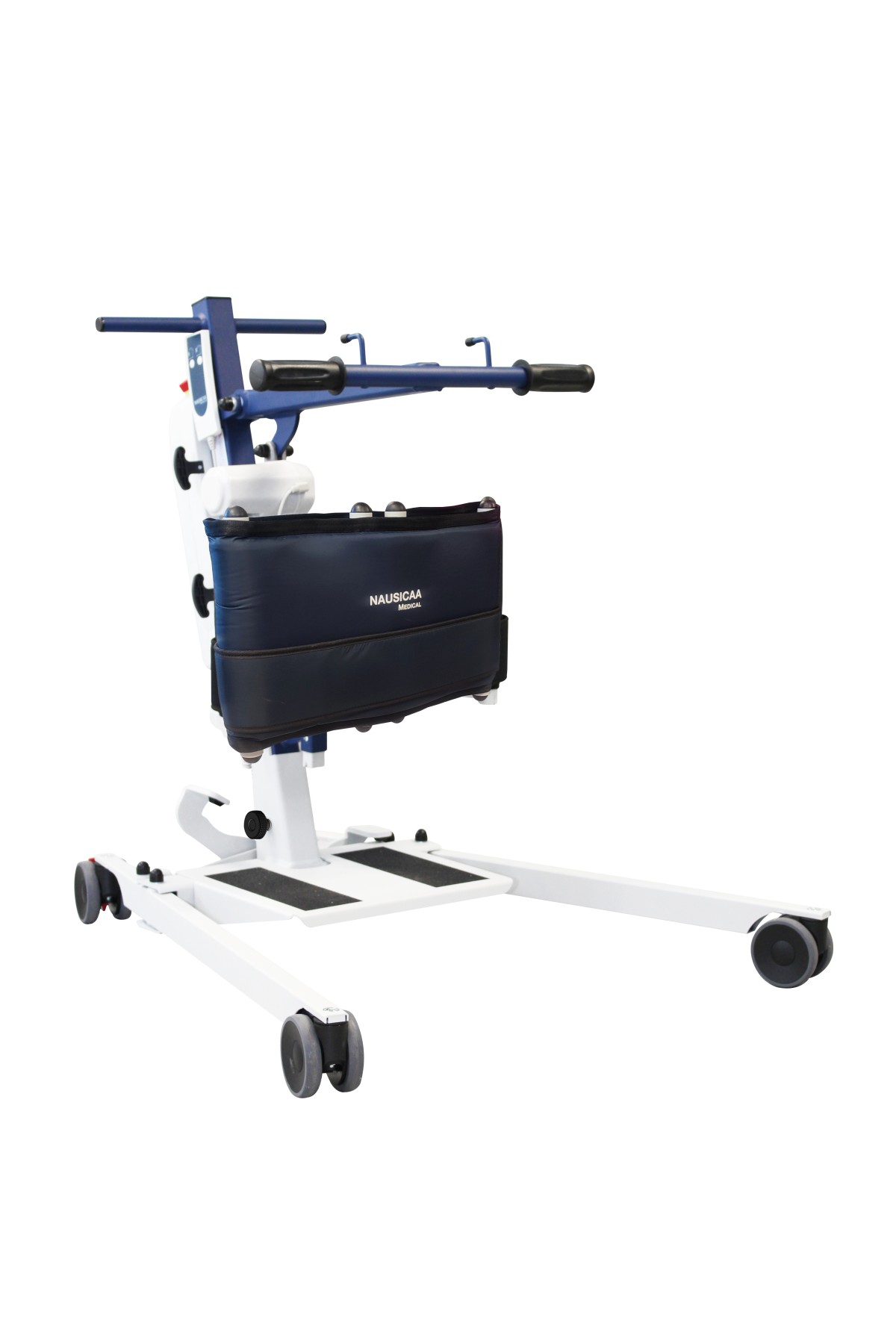

BLUE WAYUP 3 Mechanical leg spreading

The ideal balance between efficiency and cost!
The BLUE WAYUP 3 uses a patented movement that compensates for partial or complete lack of leg tone in the patient. The patient must be able to place both feet flat on the floor.
The sling is positioned at waist level; the attachment adjustment is carried out by tensioning the sling with the patient’s back firmly against the backrest.
The rapid, full deployment of the lifting arm makes it possible to move from a seated to a standing position while respecting the patient’s comfort and clinical condition.
Once the legs are secured thanks to its ergonomic knee support, the lifting movement can then be performed.
Rolling performance has been improved thanks to its 100 mm diameter wheels with double ball bearings.
Devices in the range are equipped with two emergency lowering systems: one manual and one electric.
The resulting positions help activate the patient’s mobility and bowel transit, and facilitate care such as changing, washing, and toileting.
Standard lithium battery, preventing additional operating costs.
The ECP model features a mechanically or electrically wide-opening base, making it compatible with all types of chairs. Its removable platform enables gait assistance or the use of a lowered platform.
Improved rolling performance thanks to its 100 mm diameter wheels with double ball bearings.
Optimised storage space in your warehouses and easier delivery thanks to this foldable product.
BW3ECP-CBLI

Made in France
CE certified
Class I medical device
Maximum capacity: 150 kg
Lifting actuator force: 6,000 N
Total weight with mechanical leg spreader: 32 kg
Total weight with electric leg spreader: 35 kg
Steel construction
Oven-baked epoxy coating
Standard: NF EN ISO 10535:2021
Warranty: 5 years (excluding battery); lithium battery: 2-year warranty; lead-acid battery: 1-year warranty
Total length: 100 cm
Minimum useful height: 74.5 cm
Maximum useful height: 117 cm
Total height: 99 cm
Frame height: 11.5 cm
Minimum base width: 57 cm
Maximum base width with mechanical spacing: 81 cm
Max. base width with electrical spacer: 80 cm
Turning diameter: 112 cm
