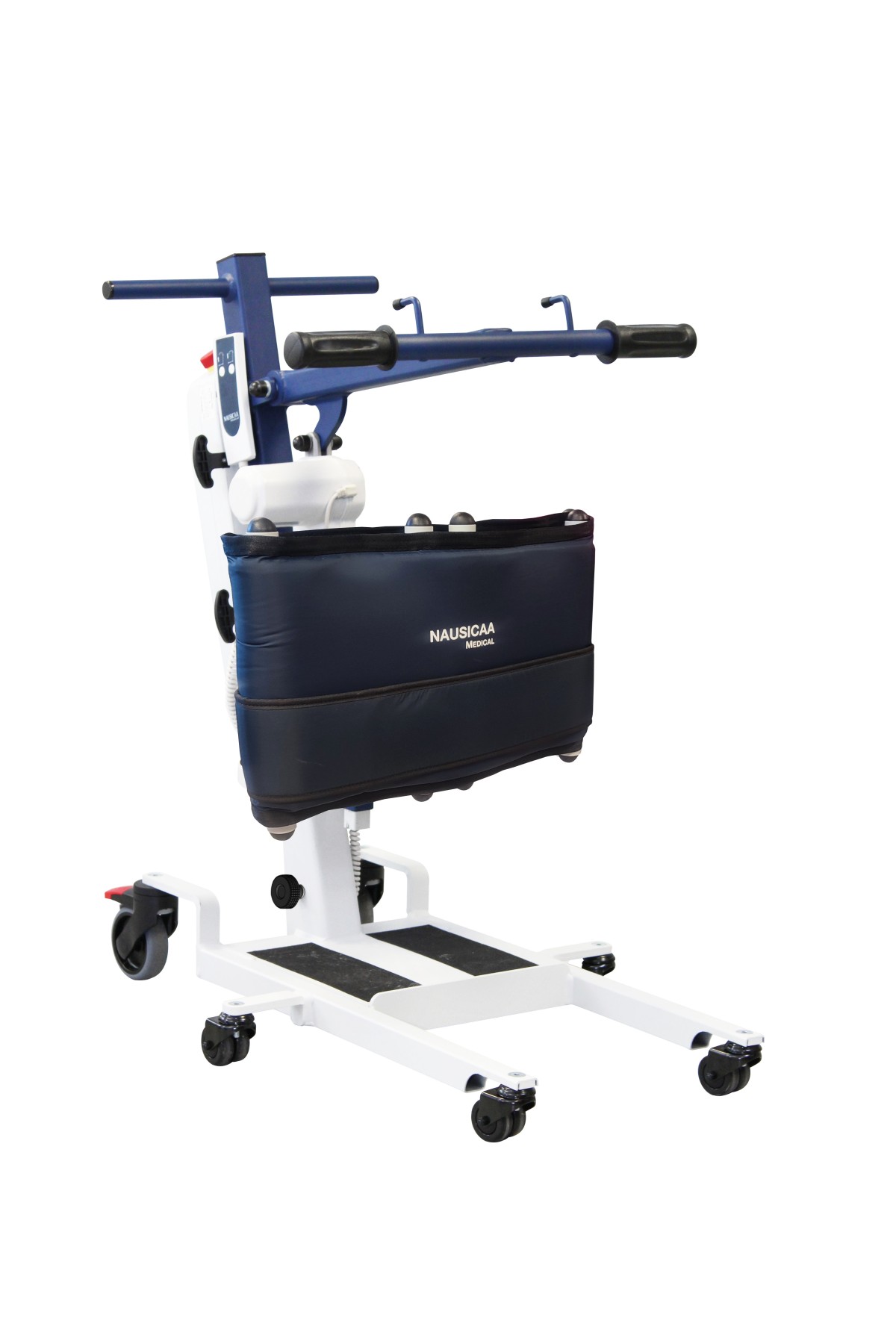

BLUE WAYUP 3 Compact

The ideal balance between performance and cost!
The BLUE WAYUP 3 uses a patented movement that compensates for partial or complete lack of muscle tone in the patient’s legs. The patient must be able to place both feet flat on the floor.

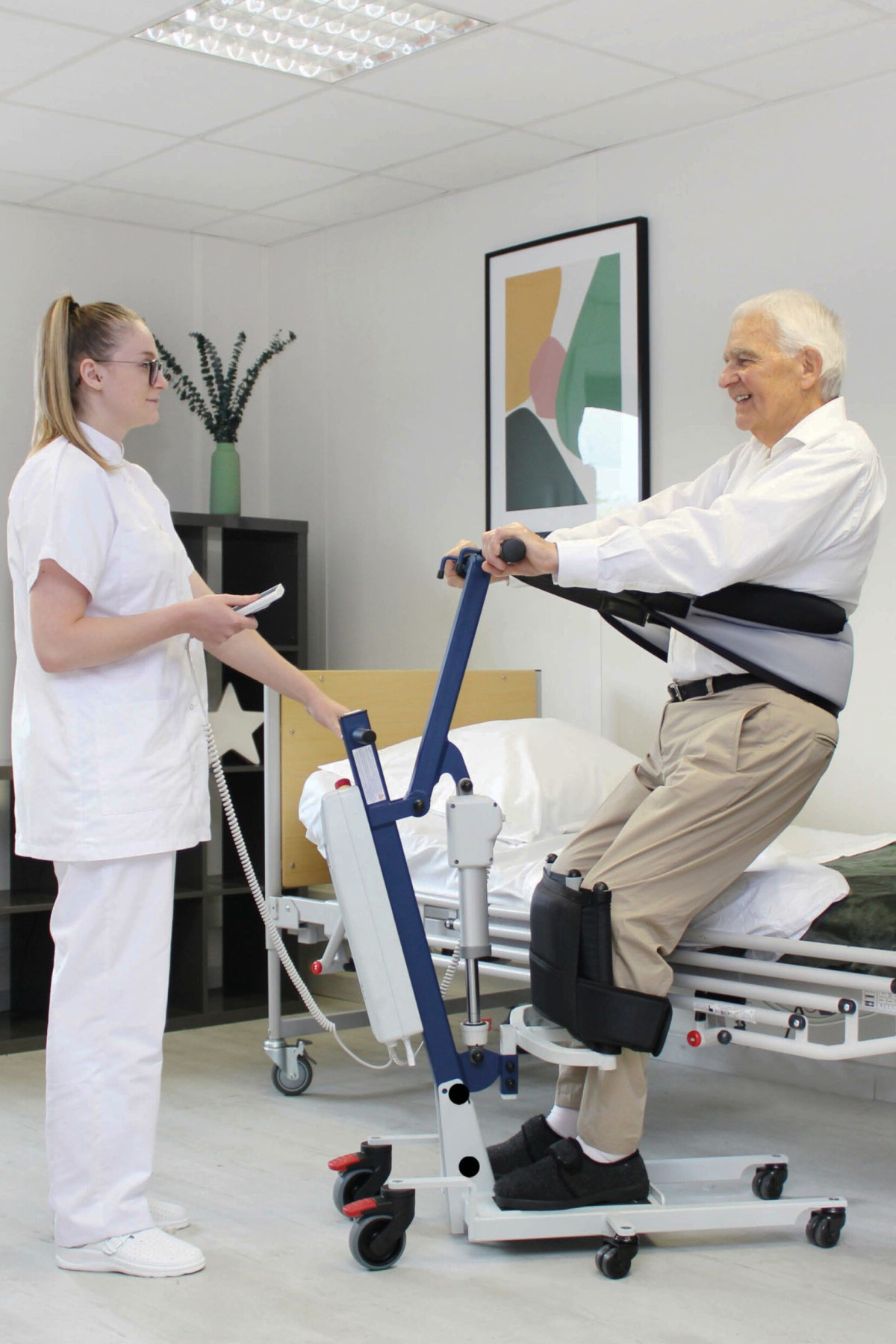

The sling is positioned at waist level; the attachment adjustment is performed by tensioning the sling with the patient’s back firmly against the backrest.
The rapid, full deployment of the lifting arm enables a smooth transition from sitting to standing while respecting patient comfort and clinical condition.
Once the legs are secured using its ergonomic knee support, the lifting movement can be performed. Manoeuvrability has been improved thanks to 100 mm wheels with double ball bearings.
Devices in the range are equipped with two emergency lowering systems: one manual and one electric.
The resulting positions promote patient mobility and bowel transit, and facilitate care such as changing, washing, and toileting.
Standard lithium battery, preventing additional operating costs.
The fixed base of the Wayup 3 Compact allows it to fit into any environment, even confined spaces such as toilets.
Optimised storage space in your warehouses and easier delivery thanks to this foldable product.

BW3-CBLI


Made in France
CE certified
Class I medical device
Maximum capacity: 150 kg
Lifting actuator force: 6,000 N
Total weight: 28 kg
Steel construction
Oven-baked epoxy coating
Standard: NF EN ISO 10535:2021
Warranty: 5 years (excluding battery); lithium battery: 2-year warranty; lead-acid battery: 1-year warranty

Total length: 91.5 cm
Minimum useful height: 77 cm
Maximum useful height: 116 cm
Total height: 94.5 cm
Frame height: 8 cm
Minimum base width: 39 cm
Max. baseplate width: 60.5 cm
Swing diameter: 89 cm
