EASYLEV Ecartement mécanique des pieds

Nausicaa Médical has developed the new Easylev stand-up lift to meet all needs related to reduced patient muscle tone, particularly those associated with progressive neurological disorders. Designed to bring the most fragile patients to a standing position without avoidable pain, the Easylev is based on a respectful, gradual lifting pattern. Its rapid weight-bearing improves tolerance in patients with pain and neurodegenerative conditions, while securing the caregiver’s handling technique.
✔ Optimal comfort during lifting thanks to its offset handlebar system for the patient
✔ Fits all environments thanks to its short base
✔ Fast, reassuring lifting, with positioning achieved in around thirty seconds
✔ Practical and compact: foldable and separable without tools, can be stored upright, and moved in trolley or cart configuration

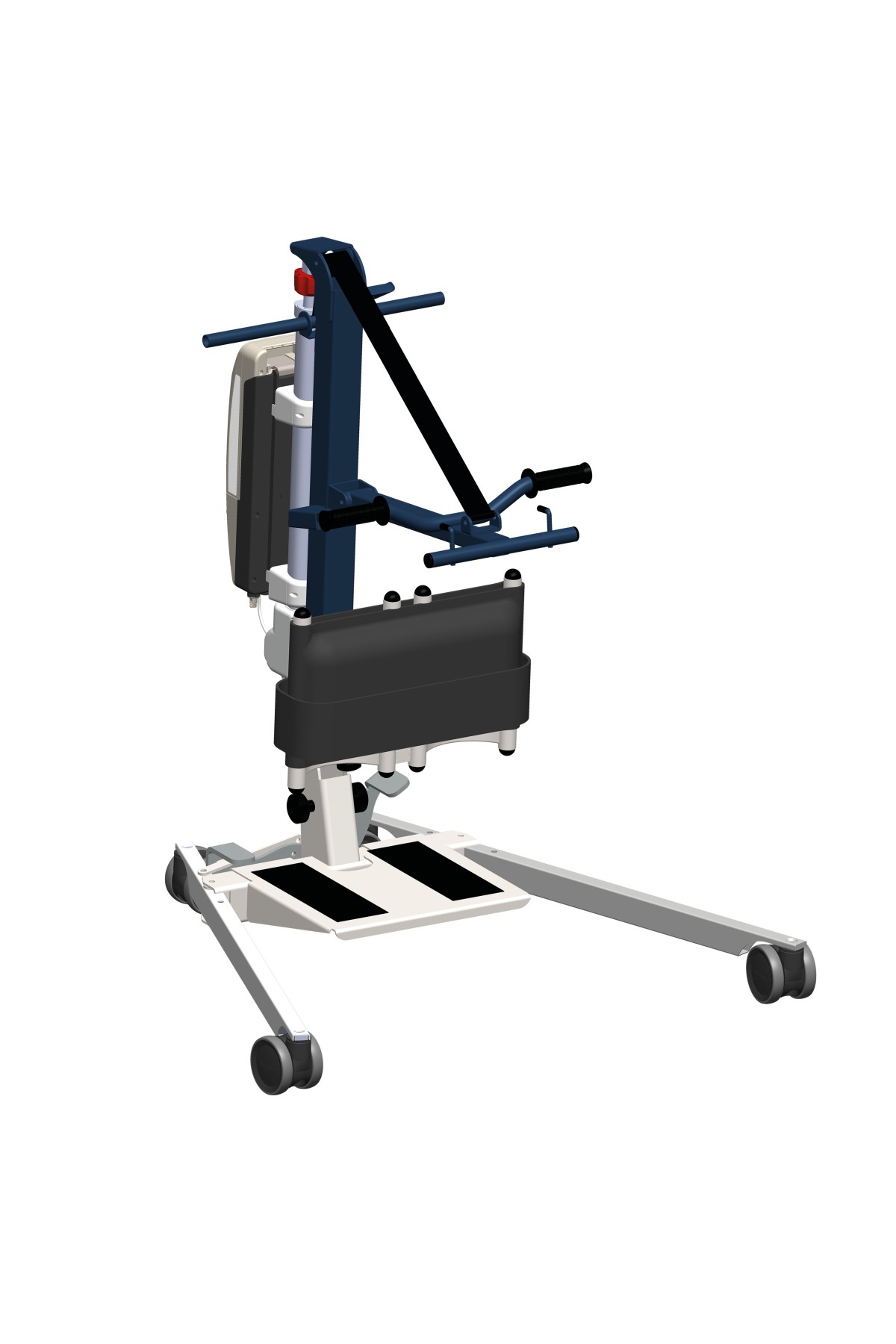

Models with mechanical or electric leg spread.
• Easy movement on all types of flooring, with easier door-threshold crossing – time savings and reduced physical strain for the caregiver.
• Effortless handling and 360° turning, improving access to tight spaces
• Quick positioning and easy access for your stand-up lift in front of your bed or any type of chair, thanks to electric leg spread in just 3 seconds.
• Improved manoeuvrability and rolling performance thanks to a central wheel positioned under the patient
• Powered assistance enabling movement under load with no effort at all
• Platform damping for improved threshold crossing
• Foldable, separable, and can be stored upright

ESL-ECP-CBLI


Made in France
CE certified
Class I medical device
Maximum capacity: 160 kg
Lifting actuator force: 3,000 N
Total weight, “mechanical ECP” version: 32 kg
Total weight, “electric ECP” version: 35 kg
Steel construction
Oven-baked epoxy coating
Standard: NF EN ISO 10535:2021
Warranty: 5 years (excluding battery); lithium battery: 2-year warranty

Overall length: 101.2 cm
Minimum usable height: 64 cm
Maximum usable height: 155 cm
Overall height: 118.1 cm
Frame height: 115 cm
Minimum base width: 57 cm (closed)
Maximum base width with mechanical spread: 81 cm
Maximum base width with mechanical spread: 80 cm
Turning radius: 1120 cm
Ground clearance: 7.5 cm
