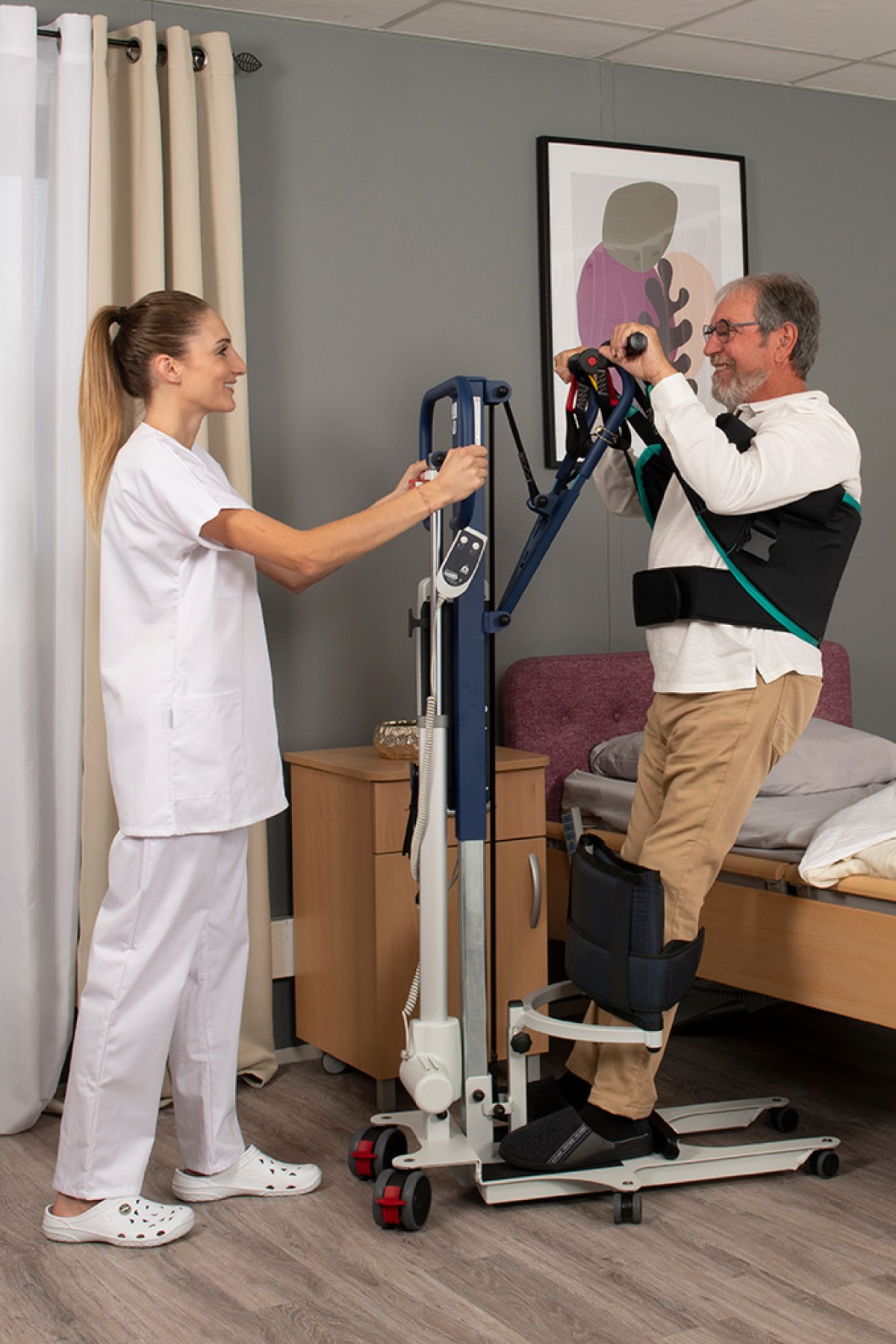

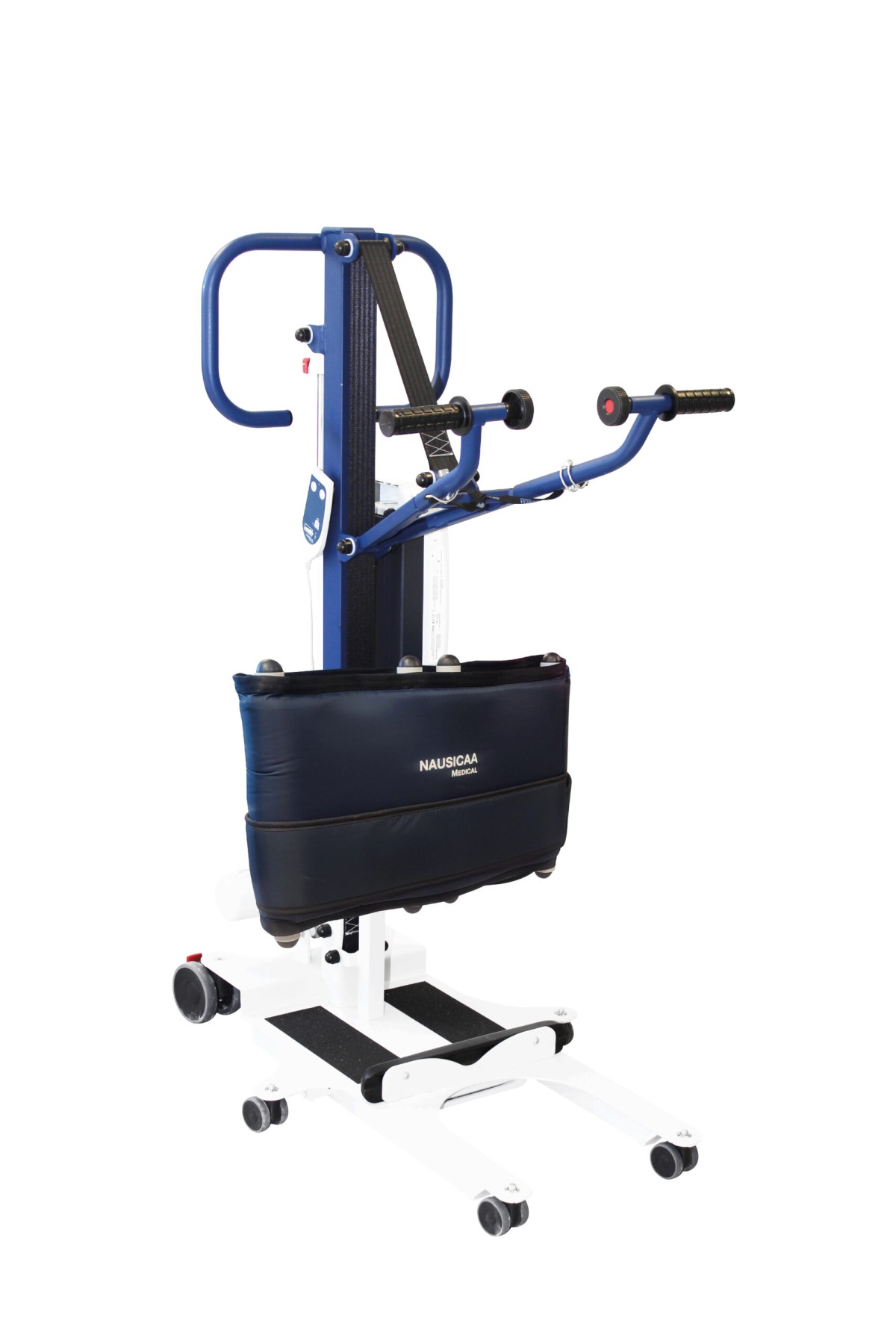

EASYLEV 5 Compact
Characterized by its patented dual movement, the new EASYLEV 5 is a top-of-the-range vertical lift enabling caregivers to provide high-quality care in all types of environments.
Its very low ground clearance (6.5 cm) allows it to pass under very low wheelchairs, especially 6-wheel electric wheelchairs.
Its small footprint means it can fit into any space (even cramped ones, like WCs).
Its very low ground clearance (6.5 cm) allows it to pass under very low wheelchairs, especially 6-wheel electric wheelchairs.
Its small footprint means it can fit into any space (even cramped ones, like WCs).
Made in France
CE certified
Class 1 medical device
Maximum capacity: 180 kg
Lifting cylinder power: 3,000 N
Total weight: 39 kg
Steel fabrication
Standard: NF EN ISO 10535: 2007
Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty
CE certified
Class 1 medical device
Maximum capacity: 180 kg
Lifting cylinder power: 3,000 N
Total weight: 39 kg
Steel fabrication
Standard: NF EN ISO 10535: 2007
Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty
Total length: 92 cm
Minimum useful height: 72 cm
Maximum useful height: 150 cm
Total height: 124 cm
Frame height: 6.5 cm
Minimum base width: 34 cm
Max. baseplate width: 56.5 cm
Turning diameter: 90 cm
Minimum useful height: 72 cm
Maximum useful height: 150 cm
Total height: 124 cm
Frame height: 6.5 cm
Minimum base width: 34 cm
Max. baseplate width: 56.5 cm
Turning diameter: 90 cm
1. Complete device
2. Battery pack
3. Cylinder
4. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
2. Battery pack
3. Cylinder
4. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
