Easylev 5

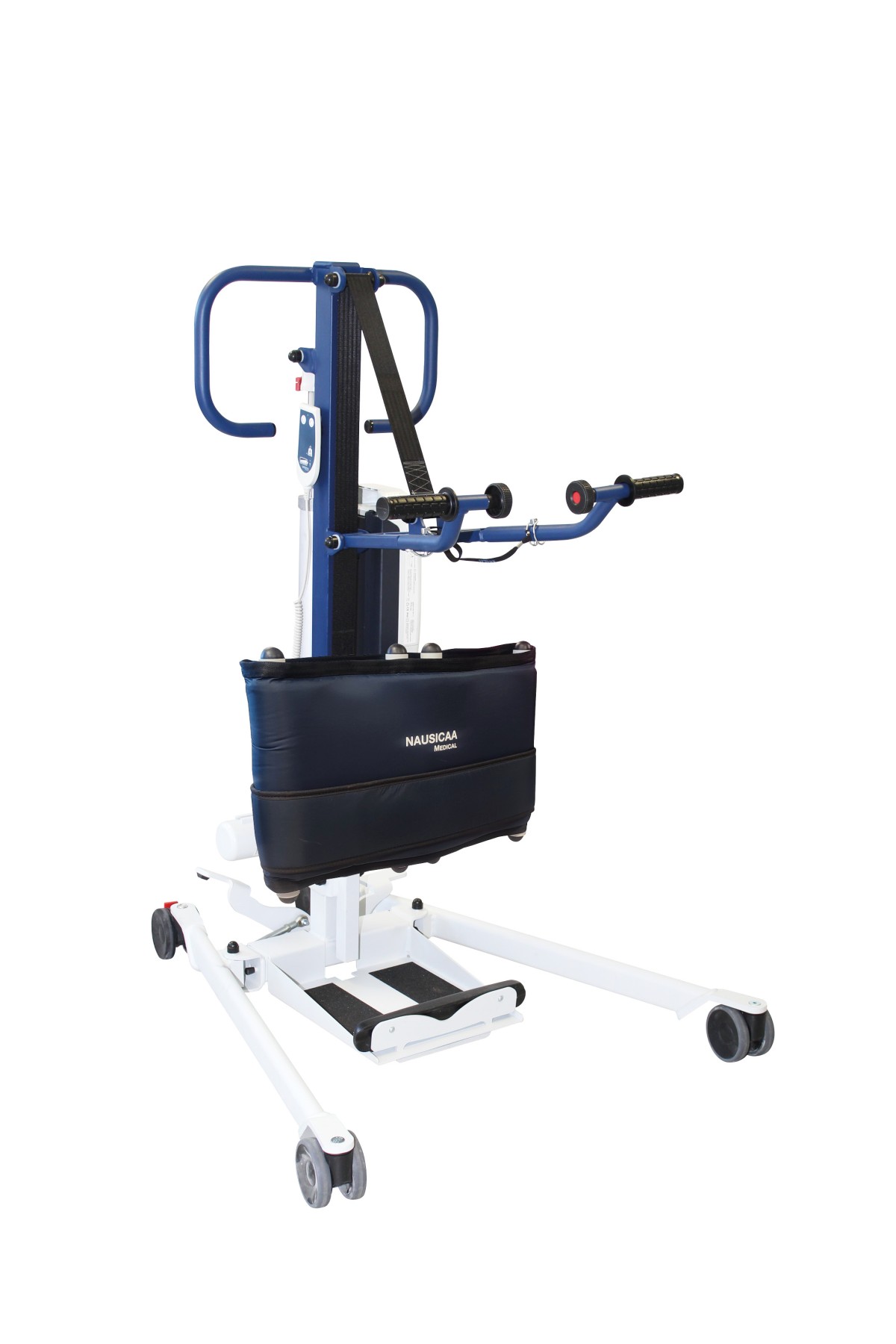

EASYLEV 5 Ecartement mécanique des pieds
Characterized by its patented dual movement, the new EASYLEV 5 ECP is a top-of-the-range vertical lift enabling caregivers to provide high-quality care in all types of environments.
Its wide, mechanically spaced base allows an opening width of 90 cm, making it compatible with a wide range of armchairs.
Walking aids are incompatible with the EASYLEV system.
Its wide, mechanically spaced base allows an opening width of 90 cm, making it compatible with a wide range of armchairs.
Walking aids are incompatible with the EASYLEV system.
Made in France
CE certified
Class 1 medical device
Maximum capacity: 180 kg
Lifting cylinder power: 3,000 N
Total weight with mechanical foot spacing: 42 kg
Total weight with electric foot spreader: 44 kg
Steel fabrication
Standard: NF EN ISO 10535: 2007
Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty
CE certified
Class 1 medical device
Maximum capacity: 180 kg
Lifting cylinder power: 3,000 N
Total weight with mechanical foot spacing: 42 kg
Total weight with electric foot spreader: 44 kg
Steel fabrication
Standard: NF EN ISO 10535: 2007
Warranty: 5 years (except battery), lithium battery: 2-year warranty, lead battery: 1-year warranty
Total length: 107 cm
Minimum useful height: 69 cm
Maximum useful height: 152 cm
Total height: 130 cm
Frame height: 11.5 cm
Minimum base width: 54 cm
Maximum base width with mechanical spacing: 83 cm
Maximum base width with electrical spacing: 80 cm
Turning diameter: 110 cm
Minimum useful height: 69 cm
Maximum useful height: 152 cm
Total height: 130 cm
Frame height: 11.5 cm
Minimum base width: 54 cm
Maximum base width with mechanical spacing: 83 cm
Maximum base width with electrical spacing: 80 cm
Turning diameter: 110 cm
EASYLEV 5 with mechanical spacer
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. EASYLEV range
EASYLEV 5 with electric spacer
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
7. EASYLEV range
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
6. Selection aid
7. EASYLEV range
EASYLEV 5 with electric spacer
1. Sales literature
3. Instruction manual
4. Product sheet
5. EU Declaration of Conformity
7. EASYLEV range
EASYLEV 5 with mechanical spacer
1. Complete device
2. Battery pack
3. Cylinder
4. Remote control
EASYLEV 5 with electric spacer
1. Complete device
2. Battery pack
3. Cylinder
4. Cylinder 2
5. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
1. Complete device
2. Battery pack
3. Cylinder
4. Remote control
EASYLEV 5 with electric spacer
1. Complete device
2. Battery pack
3. Cylinder
4. Cylinder 2
5. Remote control
Procedures
Changing control box fuses
Changing the control box connection kit
Changing the emergency stop button
Changing the LCD display
Changing the battery display
Changing the clevis pin
Changing the battery fuse
Cylinder housing replacement (6000N and 8000N)
Cylinder motor clevis replacement (6000N and 8000N)
Cylinder cable change (6000N and 8000N)
Change of cylinder upper clevis (6000N and 8000N)
